Going Electric - Photos

Click thumbnails for larger image

Original Watermota gearbox and prop shaft

Watermota engine from aft

Watermota engine from aft

Watermota engine from cabin

Watermota engine from cabin

Engine out

Motor temporarily in position

Motor temporarily in position

Motor temporarily in position

Motor with Mk 1 temporary shaft extension

New instruments - motor and solar monitors

New throttle, keyswitch and monitor

Controller temporarily in position Motor temporarily in position

Thoosa throttle replacing throttle/gear levers

Shelf for batteries

First two batteries under cockpit sole

Solar charge controller

Motor, controller, circuit breakers

Solar panels temporarily mounted on mainsheet slide.

Mk II temporary shaft extension

Mk II motor mounts, replacing Mk 1 wooden ones

Careening Alastor in Horton Bay to swap propeller shafts.

The propeller puller

Thoosa motor with new coupling flanges

Thoosa motor with indents filed in shaft

Careening again to fit new propeller shaft

Portside solar panel track

Solar panel track with temporary spar.

Solar power cable in mast, with connectors for two strings.

Final arrangement of four batteries in parallel, 120Ah at 50V.

Setting up to align the motor.

Cleaning old oil from the bilges with slices of plastic foam

Panels mounted on auxiliary track (fullsize

Controller with 2 Anderson connectors

Four batteries

Blocking diodes in the circuit breaker box.

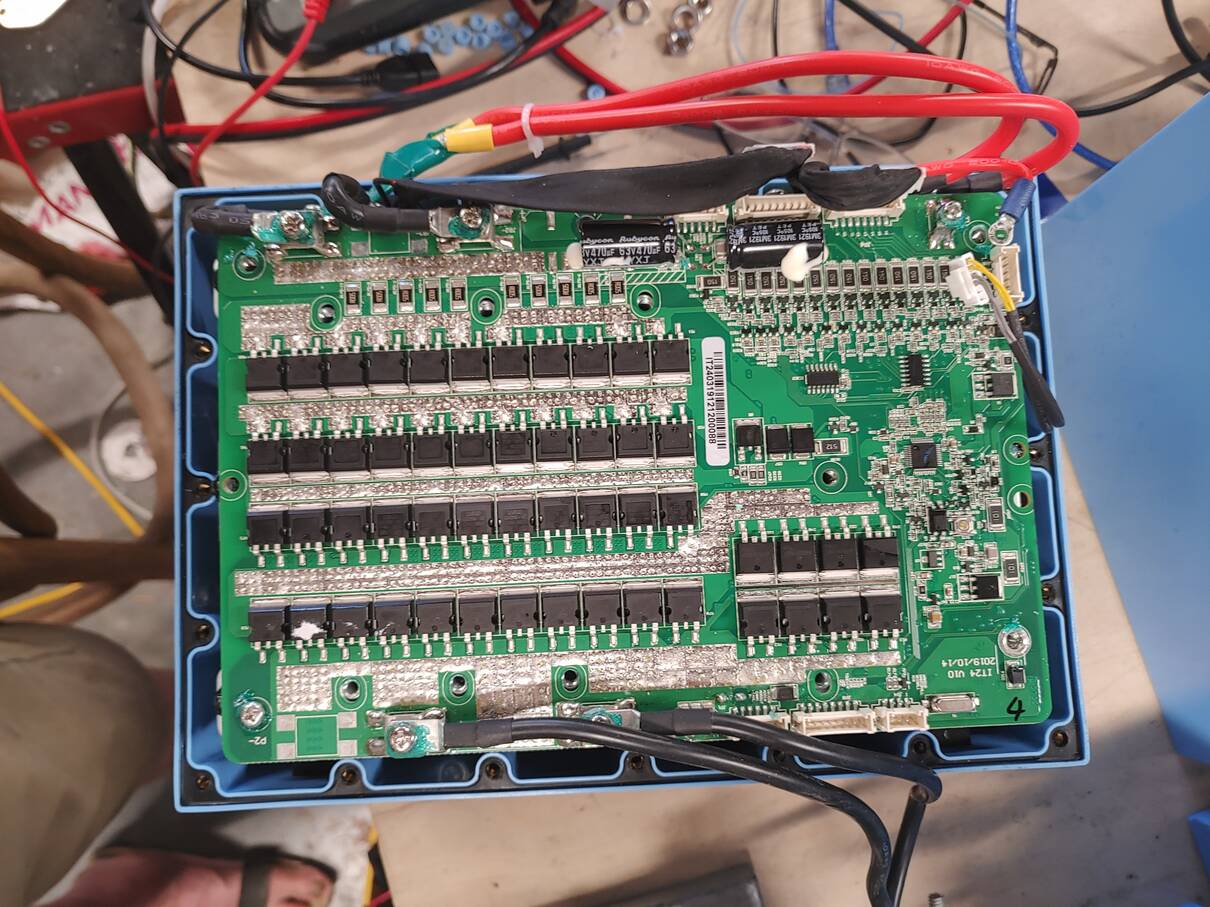

Inside the motor controller - another motor controller

Mk 2 spar with gooseneck

Mk 2 spar made from telescoping boathook

Maiden electric voyage - Princess Margaret Marine Park on Portland Island

Motor on Mk2 mounts, after pressure washing compartment

Solar panel connectors

Glueing new rear mounts.

Mk III motor mounts, aluminium with rubber isolating mounts.

Rubber mounts

Mounts with limiting bolts

The ReLiOn "fuel gauge" showing total battery capacity

Panels on Mk2 spar (fullsize)

Panels on Mk2 spar, with sail hoisted (fullsize)

Port and starboard tracks

Complete turbine assembly

Turbine pole with stays

Main turbine pole mount

Port turbine stay

Starboard turbine stay

InSight battery switch and turbine switch

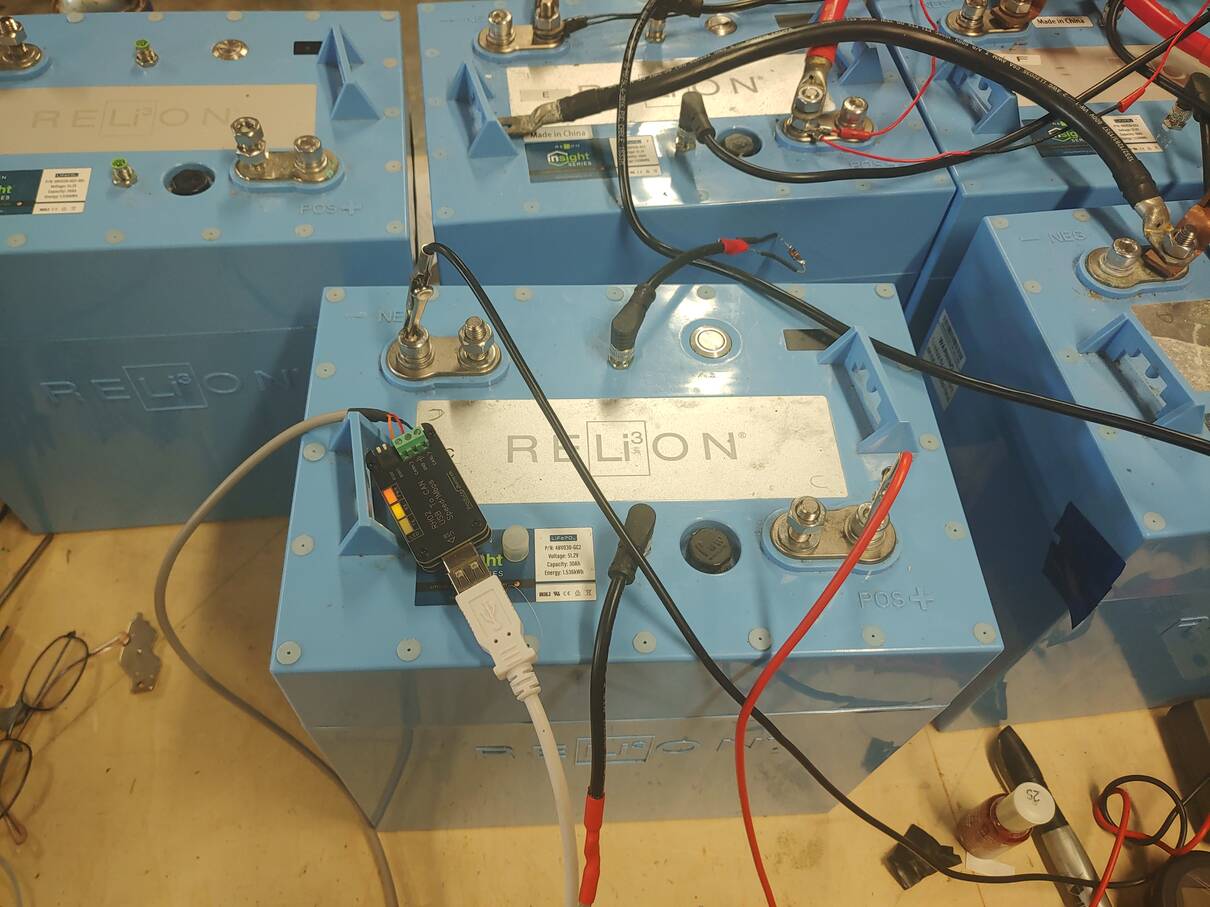

CANBUS USB interface

Panels canted out

Gaff block

Wind turbine mounts

Wind turbine mounts

Wind turbine mounts

Wind turbine

Blocks + tracks

Turbine and battery switch

Battery shelf
